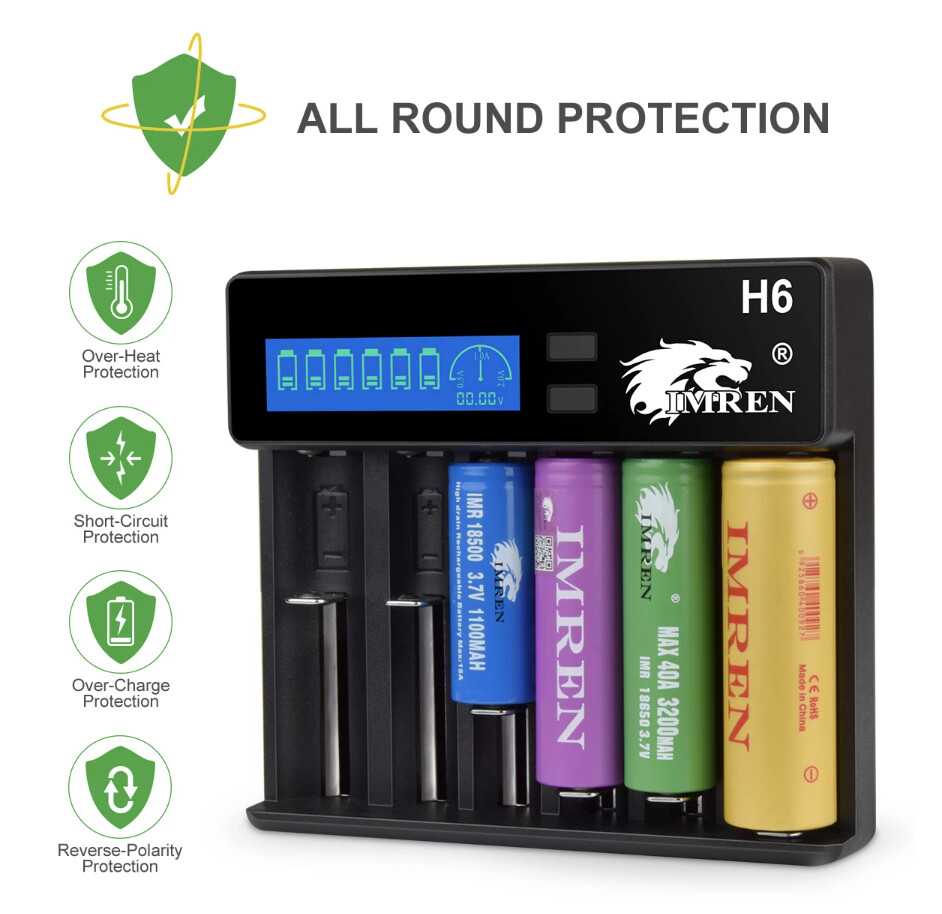

IMREN H6 Charger

Description/ Features:

 H6 is a high-end smart LCD display charger, the product has six independent charging channels, and fulfill to charge six lithium batteries at the same time. It can choose different electric currents to meet the needs of slow charging or fast charging. When charging, the LCD screen will timely display the voltage and power status of each rechargeable battery.

 Product sets dedicated charging and discharge management circuit, sets multiple security protection, can effectively prevent reverse, short circuit, overcharge, over discharge, over-current damage to the battery, let users feel safety.

 It can charge different types DC3.6V / 3.7V cylindrical lithium battery, compatible with a wide range of practical performance.

IMREN H6 Icon:

Operating Instructions:

1) According to the product indication to connect the external charging source correctly, the system check itself and LCD full-screen be on. The charger goes into the charging standby mode.

2) Charging current shift: depending on the loaded battery quantity;When loading 6 batteries simultaneously, the charger will automatically charge by default with 0.5A, can be switched by current,set the current charge current with 0.5A / 1.0A / 2.0A , only CH1 and CH6 can charge with 2.0A.

3) Correctly access to the battery(labeled + in the channel access the positive side of the battery and labeled - in the channel access the negative side of the battery), now it is in the state of charging.The LCD screen is flashing when charging, indicates the charge status. When the battery is full charged, the charger stops work and the LCD -stops flashing.

4)  It indicates charging completed when the blue lights are all on, then user can remove the battery and turn off the power supply.

Warm Tips

1) Be sure to check the charging parameters of the battery to be charged match with the charger parameters before charging the battery, or may be dangerous.

2) The charger USB interface does not have output and support external charge when using the adapter to charge the battery inside the device.

3) Make sure that the charging parameters of the device to be charged match with the product USB port parameters when using this product external charging.

4) Please regularly clean the channel in the positive, negative contact points to prevent poor contact.

5) Please do not use charger in the flammable, explosive environment.

6) Please use this charger in a dry environment.
